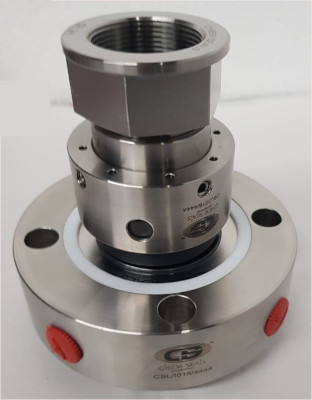

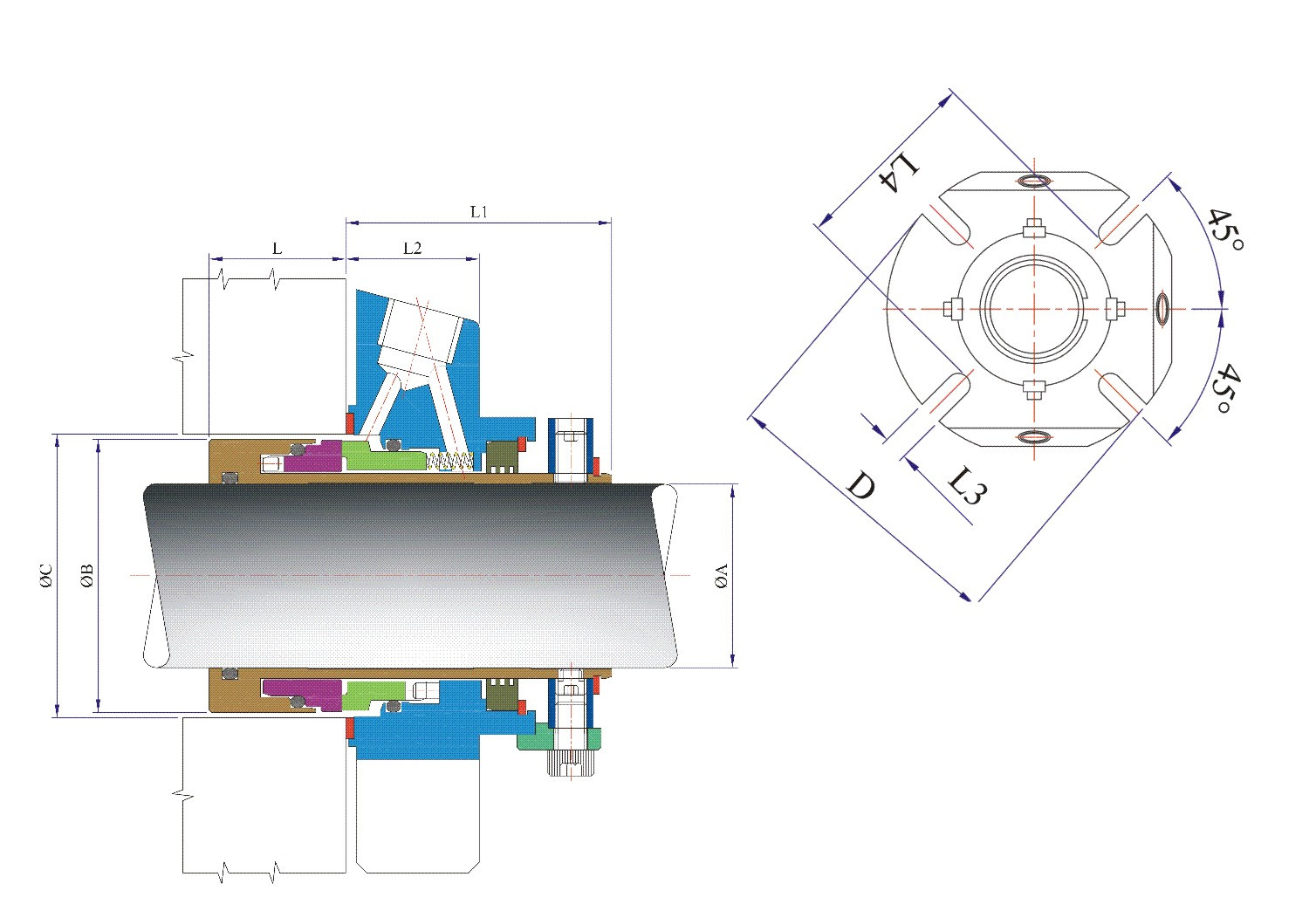

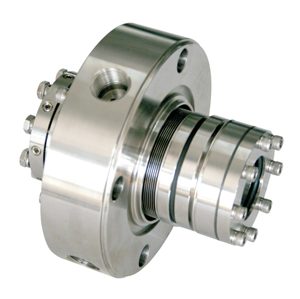

Type: CS 22

cartridge-mechanical-seals
DOWNLOAD CATALOG
Seal size ØA ØB ØC MIN ØC MAX L L1 L2 L3 L4 D
25 25 42 44 51.5 26 50.6 25.5 13.5 62 105
28 28 45 47 52 26 50.6 25.5 13.5 62 105
30 30 47 49 56 26 50.6 25.5 13.5 65 105
32 32 48.8 51 57 26 50.6 25.5 13.5 67 110
33 33 48.8 51 57 26 50.6 25.5 13.5 67 110
35 35 52 54 61.5 26 50.6 25.5 13.5 70 113
38 38 55 57 66 26 50.6 25.5 13.5 75 123
40 40 57 59 68 26 50.6 25.5 14.5 75 123
42 42 59.5 61.5 69 26 50.6 25.5 14.5 80 133
43 43 59.5 61.5 70.5 26 50.6 25.5 14.5 80 133
45 45 61.5 64 73 26 50.6 25.5 14.5 81 138
48 48 64.5 67 75 26 50.6 25.5 14.5 84 138
50 50 67 69 78 26 50.6 25.5 14.5 87 145
53 53 71 73 83 26 50.6 25.5 18 97 145
55 55 72 74 87 26 50.6 25.5 18 90 145
60 60 77 79 91 26 50.6 25.5 18 102 155
65 65 83.8 85.7 98.5 26 50.6 25.5 18 109 163
70 70 92 95 108 26 50.6 25.5 18 118 175
75 75 99 101.6 118 34 57.5 28 18 129 178
80 80 105.5 108 124 34 57.5 28 18 135 195
85 85 108.5 111.1 128 34 57.5 28 22 139 198
90 90 115 117.5 135 34 57.5 28 22 145 205
95 95 118 120.7 138 34 57.5 28 22 148 208
100 100 124.5 127 144 34 57.5 28 22 154 218

Features:

  • Single seal
  • Balanced
  • Independent of direction of rotation
  • Cartridge unit
  • Easy installation

Application:

This seal is used for handling slurries, sludges, syrups. The springs are isolated from media being sealed by dynamic elastomer.

Operating Condition:

  • Temperature : -20 ° C to +220 °C
  • Pressure : Upto 25 bar
  • Speed : 20 m/s

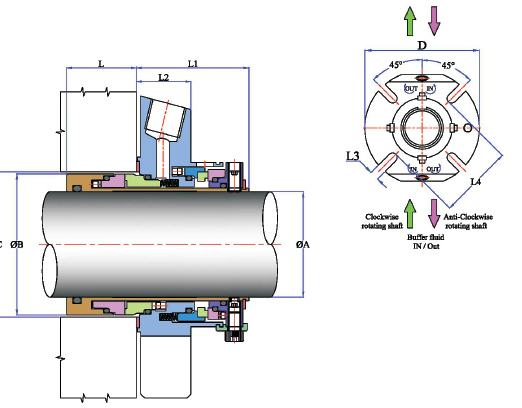

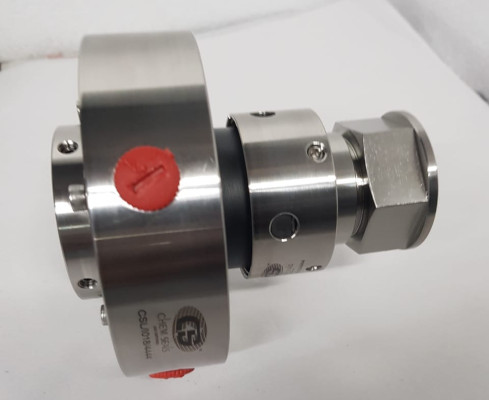

Type: CS 22 D

Features:

  • Single seals without connections with flush and with quench combined with lip seal or throttle ring.
  • Additional variants available for ANSI pumps and eccentric screw pumps.
  • Double pressure balanced
  • Integrated pumping device

Advantages

  • Ideal seal for standardizations
  • Universal applicable for packings conversions, retrofits or original equipment
  • No dimensional modification of the seal chamber (centrifugal pumps) necessary, small radial installation height
  • No damage of the shaft by dynamically loaded O-Ring
  • Extended service life
  • Straightforward and easy installation due to pre-assembled unit
  • Individual adaptation to pump design possible
  • Ideal seal for standardizations
  • Universal applicable for packings conversions, retrofits or OEM
  • No dimensional modification of the seal chamber (centrifugal pumps) necessary, small radial installation height
  • No damage of the shaft by dynamically loaded O-Ring
  • Extended service life
  • No damage caused by dirt entered during assembly
  • Straightforward and easy installation due to pre-assembled unit
  • Individual adaptation to pump design possible

Applications

  • Process industry
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Power plant technology
  • Pulp and paper industry
  • Water and waste water technology
  • Mining industry
  • Food and beverage industry
  • Sugar industry

Operating Condition:

  • Temperature : -20 ° C to +220 ° C
  • Pressure : Upto 25 bar
  • Speed : 20 m/s
Seal size ØA ØB ØC MIN ØC MAX L L1 L2 L3 L4 D
25 25 42 44 51 33 53.5 26 13.5 62 105
28 28 45 47 52 33 53.5 26 13.5 65 105
30 30 47 49 56 33 53.5 26 13.5 67 105
32 32 47.8 51 57 33 53.5 26 13.5 70 110
33 33 48.8 51 57 33 53.5 26 13.5 70 110
35 35 52 54 61.5 33 53.5 26 13.5 72 113
38 38 55 57 66 33 53.5 26 13.5 75 123
40 40 57 59 68 33 53.5 26 14.5 77 123
42 42 59.5 61.5 69 33 53.5 26 14.5 80 133
43 43 59.5 61.5 70.5 33 53.5 26 14.5 80 133
45 45 61.5 64 73 33 53.5 26 14.5 82 138
48 48 64.5 67 75 33 53.5 26 14.5 85 138
50 50 67 69 78 33 53.5 26 14.5 87 148
53 53 71 73 87 33 53.5 26 18 97 148
55 55 72 74 83 33 53.5 26 18 92 148
60 60 77 79 91 33 53.5 26 18 102 157
65 65 83.8 85.7 98.5 33 53.5 26 18 109 163
70 70 92 95 108 33 53.5 26 18 118 178
75 75 99 101.6 118 44 63.9 28 18 129 190
80 80 105.5 108 124 44 64 28 18 135 195
85 85 108.5 111.1 128 44 64 28 22 139 198
90 90 115 117.5 135 44 64 28 22 145 205
95 95 118 120.7 138 44 64 28 22 148 208
100 100 124.5 127 144 44 64 28 22 154 218

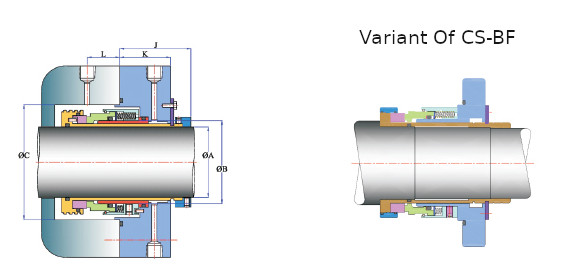

Type: CS BF

Features:

  • Single seal
  • Cartridge unit
  • Balanced
  • Inside mounted
  • Dependent of direction of rotation

Application:

This seal is generally used for Boiler feed water pump, Booster pump & condensate pump stationary spring design makes it suitable for high speed application.

Operating Condition:

  • Temperature : -20° C to +250° C
  • Pressure : Upto 60 bar
  • Speed : 50 m/s
Seal size ØA ØB ØC L K J
1 1 1.5 2.625 1.687 1.937 3.062
1.125 1.125 1.625 2.875 2 1.937 3.062
1.25 1.25 1.75 3 2 1.937 3.062
1.375 1.375 1.875 3.125 2.125 1.937 3.062
1.5 1.5 2 3.25 2.125 1.937 3.062
1.625 1.625 2.125 3.5 2.437 1.937 3.062
1.75 1.75 2.25 3.625 2.437 1.937 3.062
1.875 1.875 2.375 3.75 2.562 1.937 3.062
2 2 2.5 3.875 2.562 1.937 3.062
2.125 2.125 2.625 4 2.562 1.937 3.062
2.25 2.25 2.75 4.125 2.562 1.937 3.062
2.375 2.375 2.875 4.25 2.687 1.937 3.062
2.5 2.5 3 4.312 2.687 1.937 3.062
2.625 2.625 3.125 4.437 2.687 1.937 3.062
2.75 2.75 3.25 4.625 2.687 1.937 3.062
2.875 2.875 3.375 4.875 2.812 2.125 3.25
3 3 3.5 5 2.812 2.125 3.25
3.125 3.125 3.625 5.125 2.812 2.125 3.25
3.25 3.25 3.75 5.25 2.812 2.125 3.25
3.375 3.375 3.875 5.375 2.812 2.125 3.25
3.5 3.5 4 5.5 2.812 2.125 3.25
3.625 3.625 4.125 5.75 2.812 2.125 3.25
3.75 3.75 4.25 5.75 2.812 2.125 3.25
3.875 3.875 4.375 5.875 2.812 2.125 3.25
4 4 4.5 6.125 2.812 2.125 3.25

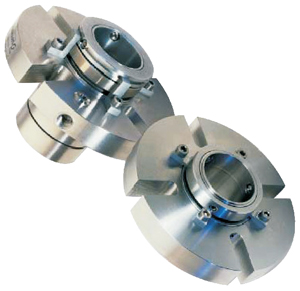

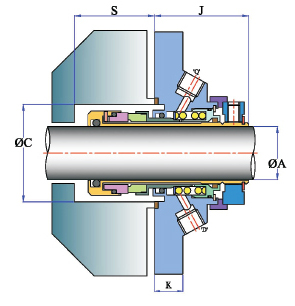

Type: CSET

Features:

  • Cartridge seal
  • Heavy Duty drive
  • Stationary external spring improves tolerance to clogging
  • Easy installation

Application:

This seal is used for a variety of duties from chemicals to oil to water, abrasive and crystallizing duties also it is used in paper and pulp industries, food processing.

On top entering agitators on variation of the design is available for use hygienic applications.

Operating Condition:

  • Temperature : 45° C to +205° C
  • Pressure : Upto20 bar
  • Speed : 25 m/s
Seal size ØA ØC MIN ØC MAX J K S
25 25 41 47.5 48 12 38
28 28 44 50.5 48 12 38
30 30 46 52.5 48 12 38
32 32 48 54.5 48 12 38
33 33 51 57.5 48 12 38
35 35 51 57.5 48 12 38
38 38 57 63.5 48 12 40
40 40 60 66.5 48 12 40
43 43 63.5 70 48 12 40
45 45 63.5 70 48 12 40
48 48 66.8 73 50 13 40
50 50 70 76.5 50 13 40
53 53 73 79.5 50 13 40
55 55 73 79.5 50 13 40
60 60 79.4 85.5 50 13 40
65 65 90 96.5 57 13 48
70 70 95 101.4 57 13 48
75 75 101.6 108 57 13 48
80 80 108 114.5 57 13 48
85 85 110 124 60.5 13 48
90 90 117.5 131 62.5 16 48
95 95 120.5 131 62.5 16 48
100 100 127 136 62.5 16 48

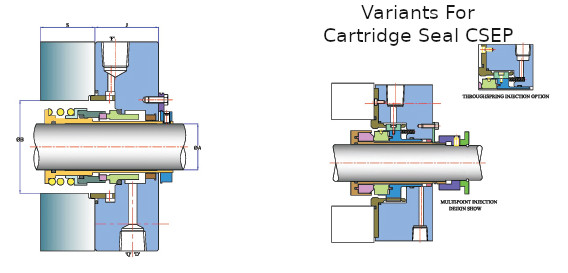

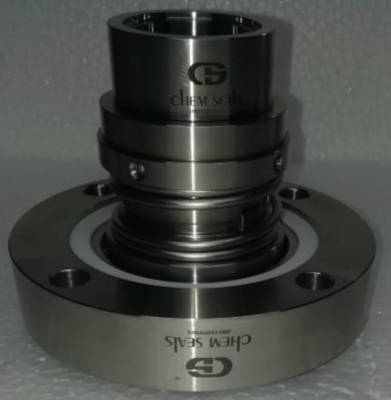

Type: CSRA

Features:

  • Cartridge seal
  • Anti distortion rotary face
  • Multiple injection point
  • Easy installation
  • Soft start, single-spring drive
  • Universal cavity for secondary seal options

Application:

This seal is used for in paper and pulp industries, chemicals and food processing petrochemicals etc.

CSRA is ideally suited for use on light hydrocarbons.

Operating Condition:

  • Temperature : -40° C to +250° C
  • Pressure : Upto 40 bar
  • Speed : 25 m/s
Seal size ØASeal size ØA ØB S J
15 41 27 62
18 44 28.5 62
21 48 33.5 62
25 50 34.5 62
29 56 40.5 63
33 61 42.5 63
38 66 42.5 63
43 73 44.5 70
46 78 44.5 70
49 81 47.5 70
53 85 50.5 70
56 90 50.5 70
60 93 53.5 70
63 102 55.5 70
68 107 55.5 70
73 111 58 70
78 118 58 70
83 122 61 70
88 127 61 73
93 134 64 73
98 141 65.5 73
100 149 66.5 73

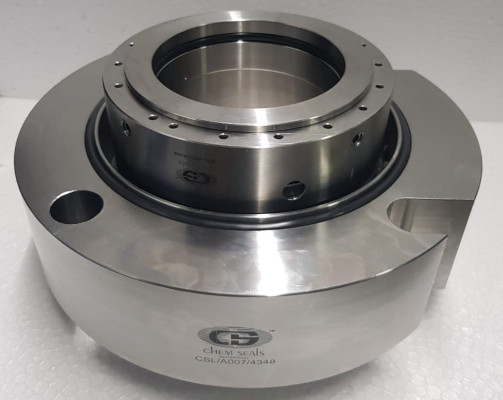

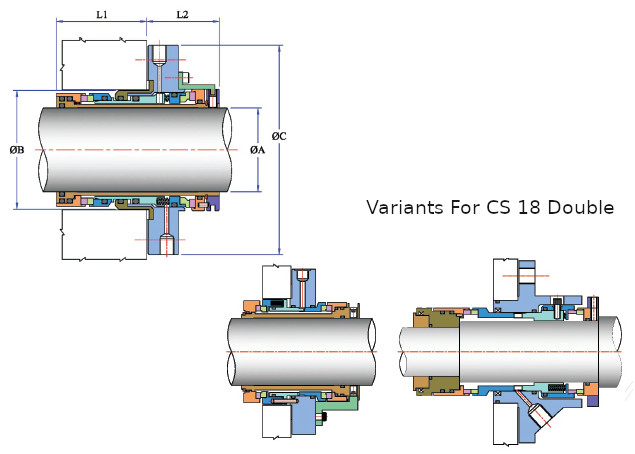

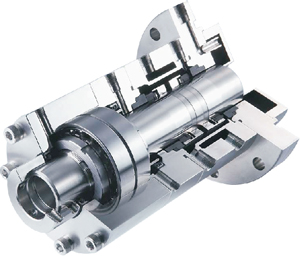

Type: CS 18

Features:

  • Balanced
  • Cartridge unit
  • Stationary spring
  • Easy installation

Application:

This seal can be in used for in pulp and paper industry and power plants process industry.

Operating Condition:

  • Temperature : 120° C
  • Pressure : Upto 15 bar
  • Speed : 20 m/s
Seal size (Inches) ØA ØB ØC D L1 L8
35 35 58 130 70 57 49
38 38 62 130 73 59 52
40 40 62 130 75 59 52
43 43 67 140 80 59 52
45 45 69 140 80 59 52
48 48 72 140 83 60 53
50 50 74 160 86 60 53
53 53 76 160 90 60 53
55 55 79 160 90 64 53
58 58 83 160 94 64 53
60 60 85 160 98 64 53
63 63 90 160 102 72 60
65 65 93 160 102 72 60
68 68 95 210 112 72 60
70 70 95 210 112 72 60
80 80 109 210 117 74 65
85 85 114 210 123 78 70
90 90 119 210 134 78 70
95 95 125 210 136 78 70
100 100 129 210 140 78 70
