Mechanical Seal Non Contact Spring
Non Contact Spring : - Type: CS 23
Features:
- Single seal
- Balanced
- Independent of direction of rotation
- Encapsulated rotating spring
Application:
Sugar industry, Pulp and paper industry, water and waste technology Dirty, abrasive and solid containing media, Raw sludge , sewage slurries etc.
Advantages
- Especially designed for solids containing and highly viscous media
- Springs are protected from the product
- Rugged and reliable design
- No damage of the shaft by dynamically loaded O-Ring
- Universal application
Operating Condition:
- Temperature : -50°C to +180°C
- Pressure : 25 bar
- Speed : 20 m/s

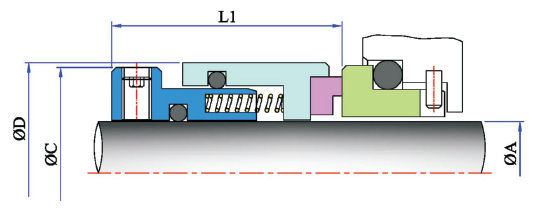

| Seal size ØASeal size ØA | ØD | L1 |
| 18 | 32 | 30.5 |
| 20 | 34 | 30.5 |
| 22 | 36 | 30.5 |
| 24 | 38 | 33 |
| 25 | 39 | 33 |
| 28 | 42 | 35.5 |
| 30 | 44 | 35.5 |
| 32 | 47 | 35.5 |
| 33 | 47 | 35.5 |
| 35 | 49 | 35.5 |
| 38 | 54 | 37 |
| 40 | 56 | 37 |
| 43 | 59 | 37 |
| 45 | 61 | 37 |
| 48 | 64 | 37 |
| 50 | 66 | 38 |
| 53 | 69 | 38 |
| 55 | 71 | 38 |
| 58 | 78 | 42 |
| 60 | 80 | 42 |
| 63 | 83 | 42 |
| 65 | 85 | 42 |
| 68 | 88 | 41.5 |
| 70 | 90 | 48.5 |
| 75 | 99 | 48.5 |
| 80 | 104 | 48.5 |
| 85 | 109 | 48.5 |
| 90 | 114 | 52 |
| 95 | 119 | 52 |
| 100 | 124 | 52 |
