Mechanical Seal Pusher Seal

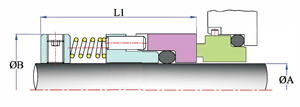

Pusher Seals : - Type: CS 14
Features:
- Independent on shaft roration
- Unbalanced
- Multi spring design
It is a three-piece rotary unit available in a wide variety of metallurgies offering flexible mechanical features with maximum reliability.
Application :
Chemical pumps for Fertilizer & Petrochemical Industries. These type are designed to handle clear fluid, hence easy in installation & maintenance multi spring design ensures uniform pressure on seal under all operating conditions.
Operating Conditions :
- Temperature : -60°C to +160°C
- Pressure : 10 bar
- Speed : 22.5 m/s
| Seal size (Inches) |
ØA |
ØB |
L1 |
| 1 |
25.4 |
39.7 |
41.27 |
| 1.125 |
28.575 |
42.85 |
41.27 |
| 1.25 |
31.75 |
46.2 |
41.27 |
| 1.375 |
34.925 |
49.2 |
41.27 |
| 1.5 |
38.1 |
52.38 |
41.27 |
| 1.625 |
41.275 |
58.73 |
44.45 |
| 1.75 |
44.45 |
60.32 |
44.45 |
| 1.875 |
47.625 |
65.07 |
44.45 |
| 2 |
50.8 |
68.25 |
44.45 |
| 2.125 |
53.975 |
71.42 |
44.45 |
| 2.25 |
57.15 |
74.59 |
44.45 |
| 2.375 |
60.325 |
77.77 |
44.45 |
| 2.5 |
63.5 |
80.94 |
44.45 |
| 2.625 |
66.675 |
84.12 |
44.45 |
| 2.75 |
69.85 |
87.29 |
44.45 |
| 2.875 |
73.025 |
90.47 |
44.45 |
| 3 |
76.2 |
93.64 |
44.45 |

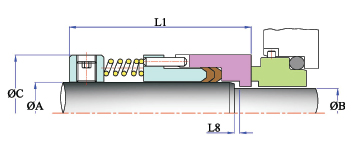

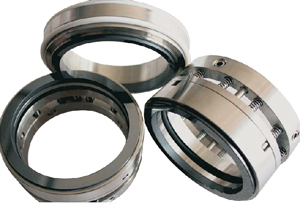

Type: CS 14B
Features:
- Independent on shaft roration
- balanced
- Multi spring design
It is a three-piece rotary unit available in a wide variety of metallurgies offering flexible mechanical features with maximum reliability.
Chemical pumps for Fertilizer & Petrochemical Industries. These type are designed to handle clear fluid, hence easy in installation & maintenance multi spring design ensures uniform pressure on seal under all operating conditions.
Operating Conditions :
- Temperature : -60°C to +160°C
- Pressure : 10 bar
- Speed : 20 m/s
| Seal size (Inches) |
ØA |
ØB |
ØC |
L1 |
L8 |
| 1000 |
22.2 |
25.4 |
39.7 |
44.3 |
2.8 |
| 1.125 |
25.4 |
28.58 |
42.85 |
44.3 |
2.8 |
| 1.25 |
28.6 |
31.75 |
46.02 |
44.3 |
2.8 |
| 1.375 |
28.6 |
34.93 |
49.2 |
44.3 |
2.8 |
| 1.5 |
31.8 |
38.1 |
52.38 |
44.3 |
3 |
| 1.625 |
34.9 |
41.28 |
58.73 |
47.5 |
3 |
| 1.75 |
38.1 |
44.45 |
60.32 |
47.5 |
3 |
| 1.875 |
41.3 |
47.63 |
65.07 |
47.5 |
3 |
| 2 |
44.5 |
50.8 |
68.25 |
47.5 |
3.5 |
| 2.125 |
47.6 |
53.98 |
71.42 |
47.5 |
3.5 |
| 2.25 |
50.8 |
57.15 |
74.59 |
47.5 |
3.5 |
| 2.375 |
54 |
60.33 |
77.77 |
47.5 |
3.5 |
| 2.5 |
57.2 |
63.5 |
80.94 |
47.5 |
3.5 |
| 2.625 |
60.3 |
66.68 |
84.12 |
47.5 |
3.5 |
| 2.75 |
63.5 |
69.85 |
87.29 |
47.5 |
3.5 |
| 2.875 |
66.7 |
73.03 |
90.47 |
47.5 |
3.5 |
| 3 |
69.9 |
76.2 |
93.64 |
47.5 |
3.5 |
