Mechanical Seal External Seal
Type: CS 5
Features :
Applications:
It is used with corrosive liquids at low and medium pressures. In the basic versions it doesn't present parts in contact with the product.
Operating Condition:
- Temperature : -45¡ÆC to +140¡ÆC
- Pressure : up to 15 bar g
- Speed : 10 m/s

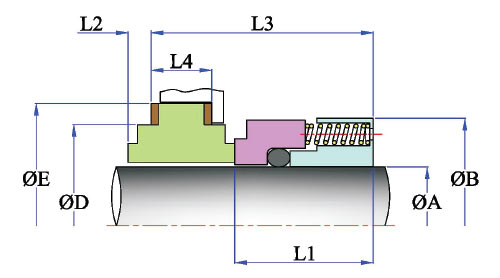

| A | B | D | E | I1 | I2 | I3 | I4 |
| 20 | 40 | 39 | 50 | 22 | 8.5 | 41.5 | 10.3 |
| 22 | 42 | 44 | 55 | 22 | 8.5 | 41.5 | 10.3 |
| 24 | 44 | 46 | 57 | 22 | 8.5 | 41.5 | 10.3 |
| 25 | 47 | 47 | 58 | 24 | 8.5 | 43.5 | 10.3 |
| 28 | 50 | 50 | 61 | 24 | 8.5 | 43.5 | 10.3 |
| 30 | 52 | 52 | 63 | 24 | 8.5 | 45.5 | 12.3 |
| 32 | 54 | 54 | 65 | 24 | 8.5 | 45.5 | 12.3 |
| 33 | 55 | 55 | 66 | 24 | 8.5 | 45.5 | 12.3 |
| 35 | 57 | 57 | 68 | 24 | 8.5 | 45.5 | 12.3 |
| 38 | 65 | 63 | 74 | 29 | 9.5 | 51.5 | 13.1 |
| 40 | 67 | 65 | 76 | 29 | 9.5 | 51.5 | 13.1 |
| 42 | 69 | 67 | 78 | 29 | 9.5 | 51.5 | 13.1 |
| 43 | 70 | 68 | 79 | 29 | 9.5 | 51.5 | 13.1 |
| 45 | 72 | 70 | 81 | 29 | 9.5 | 51.5 | 13.1 |
| 48 | 75 | 73 | 84 | 29 | 9.5 | 51.5 | 13.1 |
| 50 | 77 | 76 | 89 | 29 | 9.5 | 51.5 | 13.1 |
| 53 | 80 | 79 | 92 | 29 | 9.5 | 51.5 | 13.1 |
| 55 | 82 | 81 | 94 | 29 | 9.5 | 51.5 | 13.1 |
| 58 | 85 | 84 | 97 | 29 | 9.5 | 51.5 | 13.1 |
| 60 | 87 | 86 | 99 | 29 | 9.5 | 51.5 | 13.1 |
| 63 | 90 | 89 | 102 | 29 | 9.5 | 51.5 | 13.1 |
| 65 | 92 | 91 | 104 | 29 | 9.5 | 51.5 | 13.1 |
| 68 | 95 | 94 | 107 | 29 | 9.5 | 51.5 | 13.1 |
| 70 | 97 | 96 | 109 | 29 | 9.5 | 51.5 | 13.1 |
| 75 | 102 | 101 | 114 | 29 | 9.5 | 51.5 | 13.1 |
| 80 | 112,5 | 111 | 124 | 31 | 9.5 | 53.5 | 13.1 |
| 85 | 117,5 | 116 | 129 | 31 | 9.5 | 53.5 | 13.1 |
| 90 | 122,5 | 121 | 134 | 31 | 9.5 | 53.5 | 13.1 |
| 95 | 127,5 | 126 | 139 | 31 | 9.5 | 53.5 | 13.1 |
| 100 | 132,5 | 131 | 144 | 31 | 9.5 | 53.5 | 13.1 |
