Wave Spring Type Mechanical Seal:CS2
Features of Wave Spring Type Mechanical Seal:
- Single Seal
- Unbalanced
- Independent of direction of rotation
- For plain shafts
- Super-Sinus-spring or multiple springs rotating
- Variant with PTFE secondary seals for high chemical resistance
The CS2 mechanical seal range is designed for universal application and ideal suited for standardization. The loosely inserted seal faces are easily exchanged, permitting all combinations of materials and stock rationalization.
Advantages
- Insensitive to low solids contents
- Flexibility in torque transmissions
- Self cleaning effect
- Short installation length possible
- Pumping screw for media with higher viscosity
Applications :
CS2 is used for water pumps , chemical industry, sewage pumps , submerged pumps etc.
Operating Condition :
- Temperature : -50 C to +220 C
- Pressure : 16 bar g
- Speed : 20 m/s

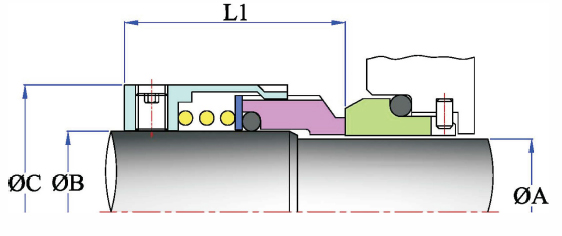

| ØA | ØB | I1 |
| 14 | 25 | 25 |
| 16 | 27 | 25 |
| 18 | 33 | 26 |
| 20 | 35 | 26 |
| 22 | 37 | 26 |
| 24 | 39 | 28.5 |
| 25 | 40 | 28.5 |
| 28 | 43 | 31 |
| 30 | 45 | 31 |
| 32 | 47 | 31 |
| 33 | 48 | 31 |
| 35 | 50 | 31 |
| 38 | 55 | 31 |
| 40 | 57 | 31 |
| 43 | 60 | 31 |
| 45 | 62 | 31 |
| 48 | 65 | 31 |
| 50 | 67 | 32.5 |
| 53 | 70 | 32.5 |
| 55 | 72 | 32.5 |
| 58 | 79 | 37.5 |
| 60 | 81 | 37.5 |
| 63 | 84 | 37.5 |
| 65 | 86 | 37.5 |
| 68 | 89 | 37.5 |
| 70 | 91 | 42 |
| 75 | 99 | 42 |
| 80 | 104 | 41.8 |
| 85 | 109 | 418 |
| 90 | 114 | 46.8 |
| 95 | 119 | 47.8 |
| 100 | 124 | 47.8 |
